Colerain Rifle Barrels

Muzzle loading gun barrels manufactured by the Colerain Barrel Company are precision crafted to closely duplicate the original barrels used in Colonial America and Europe. Colerain muzzle loading barrels are made from selected 12-L-14 steel.

RIFLING:
6 groove cut rifling. Radius Groove (round bottom)
.36, .40 are .012 deep
.45, .50, .54, .58, .62 are .016 deep

RIFLING TWIST:
1 in 48” up to and including .40 cal.
1 in 56” for .45, .50, .54, .58 cal.
1 in 66” for .62 cal.

All of our tapered and flared (swamped) and octagonal to round (O/R) are supplied with crowned muzzles and a fitted, flared style breech plug.

Additional Services for barrels:

  • We will fit a breech plug for a $20 labor charge (cost of breech plug extra).
  • Patent breeches can be fitted for a $40 labor charge (cost of breech extra).
  • We will cut dovetails for sights and tennons at a $10 labor charge for each slot. (You tell us where to cut them.)

Safety first!
Muzzle loading barrels are designed for black powder use only. The use of modern smokeless gunpowder will result in barrel failure and serious injury or death. Our barrels are designed for black powder only. Do not use black powder substitutes or smokeless powder.


Jaeger  Barrel $183.00

Calibers Available:
A-Weight 50, 54, 58 and 62 cal.
B-Weight up to and including 54 cal. (SPECIAL ORDER ONLY)

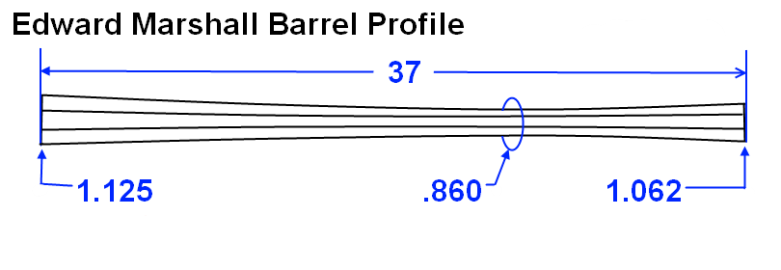

Edward Marshall Barrel $183.00

Calibers Available:
50, 54, 58 and 62

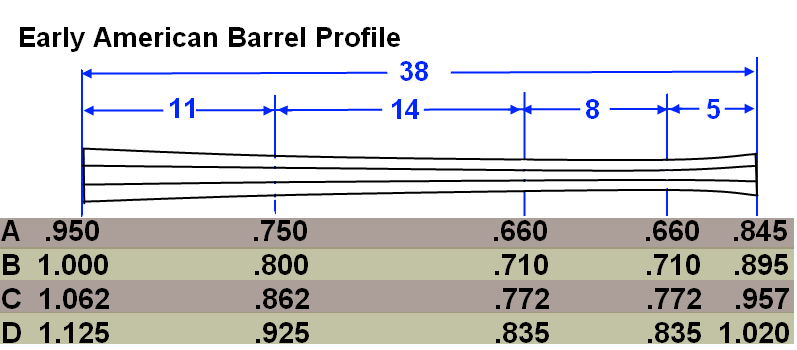

Early American Barrel $185.00
Calibers Available:
A-weight 36, 40
B-weight 40, 45, 50
C-weight 50, 54
D-weight 58, 62

Classic American Barrel $190.00
Calibers Available:
A-weight 36, 40
B-weight 40, 45, 50
C-weight 50, 54
D-weight 58, 62

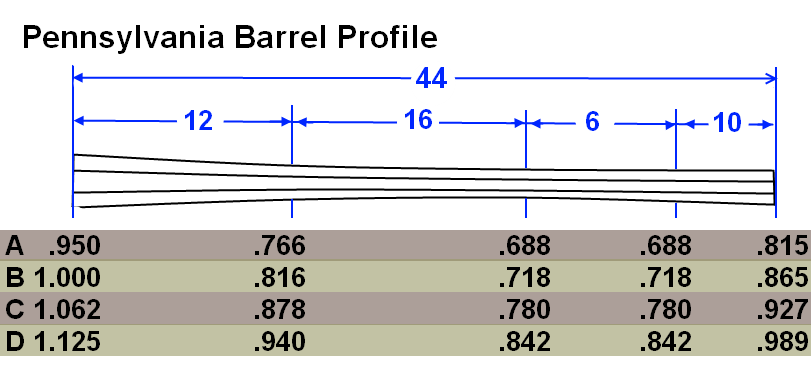

Pennsylvania Barrel $190.00

Calibers Available:
A-weight 36, 40
B-weight 40, 45, 50
C-weight 50, 54
D-weight 58, 62

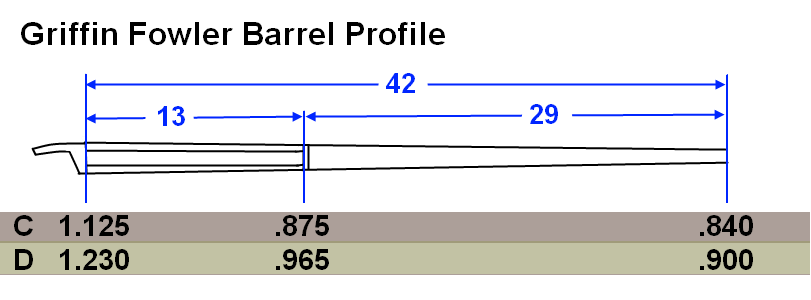

Griffin Fowler Barrel - Smoothbore $200.00 Griffin Fowler Barrel – Rifled $212.00
A-weight .36, .40
B-weight .40, .45, .50
C-weight .50, .54
D-weight .58, .62
Calibers: .54, .58
Gauges: 20, 16, 1





American Fowler Barrel Variants
44 inch Rifled Barrels
Length / Barrel Weight
Weight Caliber or Gauge Note
Price
44 inches / Rifled / A Weight A .36, .40 N/A $212 Rifled
44 inches / Rifled / B Weight B .40, .45, .50 N/A $212 Rifled
44 inches / Rifled / C Weight C .50, .54, .58 N/A $212 Rifled
44 inches / Rifled / D Weight D .62 Rifled Only $212 Rifled
44 inch Smoothbore Barrels
44 inches / Smooth / A Weight A .36, .40 Regular Choke $200 Smooth
44 inches / Smooth / B Weight B .40, .45, .50 Regular Choke $200 Smooth
44 inches / Smooth / C Weight C .50, .54, .58 Regular Choke $200 Smooth
44 inches / Smooth / D Weight D 20 gauge Regular Choke $200 Smooth
Also Available
46 inches / Smooth / C and D Weight
(Special Order, call for availability.)
C and D 20 gauge Regular Choke $215 Smooth
38 inches / Smooth / C Weight C .50, .54, .58 Regular Choke $200 Smooth
38 inches / Rifled / C Weight C .50, .54, .58 Rifled $212 Rifled
38 inches / Rifled / D Weight D .62 Rifled Only $212 Rifled
38 inch and 44 inch / Smooth / C Weight C 20, 16 gauge Regular Choke $200 Smooth
38 inch and 44 inch / Smooth
(1 1/4 inch in the breech, which is larger than a D weight.)
12 gauge Regular Choke $200 Smooth
Turkey Choke
38 inch and 44 inch **Turkey Choke / C Weight C 20 gauge only **Turkey Choke $212 Turkey Choke

**Do not shoot Balls, Conicals or Slugs in Turkey Choke barrels!
They are designed for shot ONLY. The use of balls, conicals or slugs can result in barrel failure and serious injury or death.

We are happy to fill your order via telephone. We will tell you upfront if your parts are on hand, your total and when you can expect your package. Please be aware we are a family mail order business and we do not maintain a conventional store that you can visit.

Phone 434-993-3557
